Owing to its outrigger width of merely 5.95 m and the minimal installation height of 5 m, the Schwing KVM 23/20 is ideally suited for construction sites with a small working area.
Due to its very low overhead clearance of merely 3.65 m it can be applied on construction sites that are hard to access.
The KVM 23/20 is frequently used in halls, under bridges or tunnels where space is very limited.
| Specifications: | |
| Outrigger width front: | 5.95 m |
| Outrigger width back: | 3.65 m |
| Min. installation height: | 5.00 m |
| Number of Arms: | 4 |
| Max. height: | 22.60 m |
| Max. reach: | 19.10 m |
| Delivery rate: | 90 m3/h |
| Max. concrete pressure: | 108 Bar |

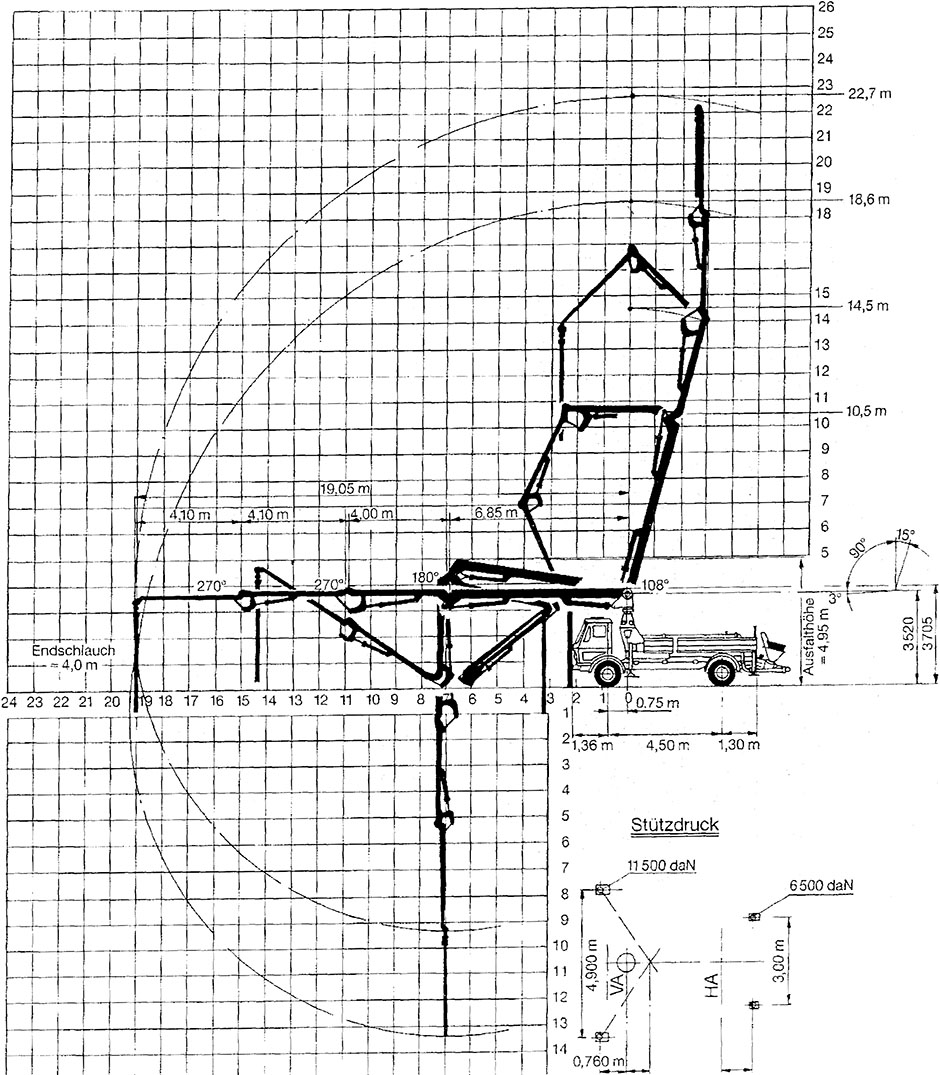

Operating range:
