The truck-mixer concrete pump is best suited for construction sites where a small amount of concrete needs to be pumped to its destination.
With our truck-mixer pump, it is possible to both transport up to 4m3 of concrete and pump the material accross obstacles in a range of 22.5 m.
If further material is required, concrete can be pumped from an additional concrete mixer via the truck-mixer pump to its destination.
If large amounts of concrete are needed, using a more powerful concrete pump is recommended.
| Specifications: | |
| Outrigger width front: | 5.35 m |
| Outrigger width back: | 2.55 m |
| Min. installation height: | 7 m |
| Number of Arms: | 4 |
| Max. height: | 29.00 m |
| Max. reach: | 25.50 m |
| Delivery rate: | 50 m3/h |
| Max. concrete pressure: | 70 Bar |
| Max. Ladevolumen | 4m3 |
| Max. Ladegewicht | 6300 kg |

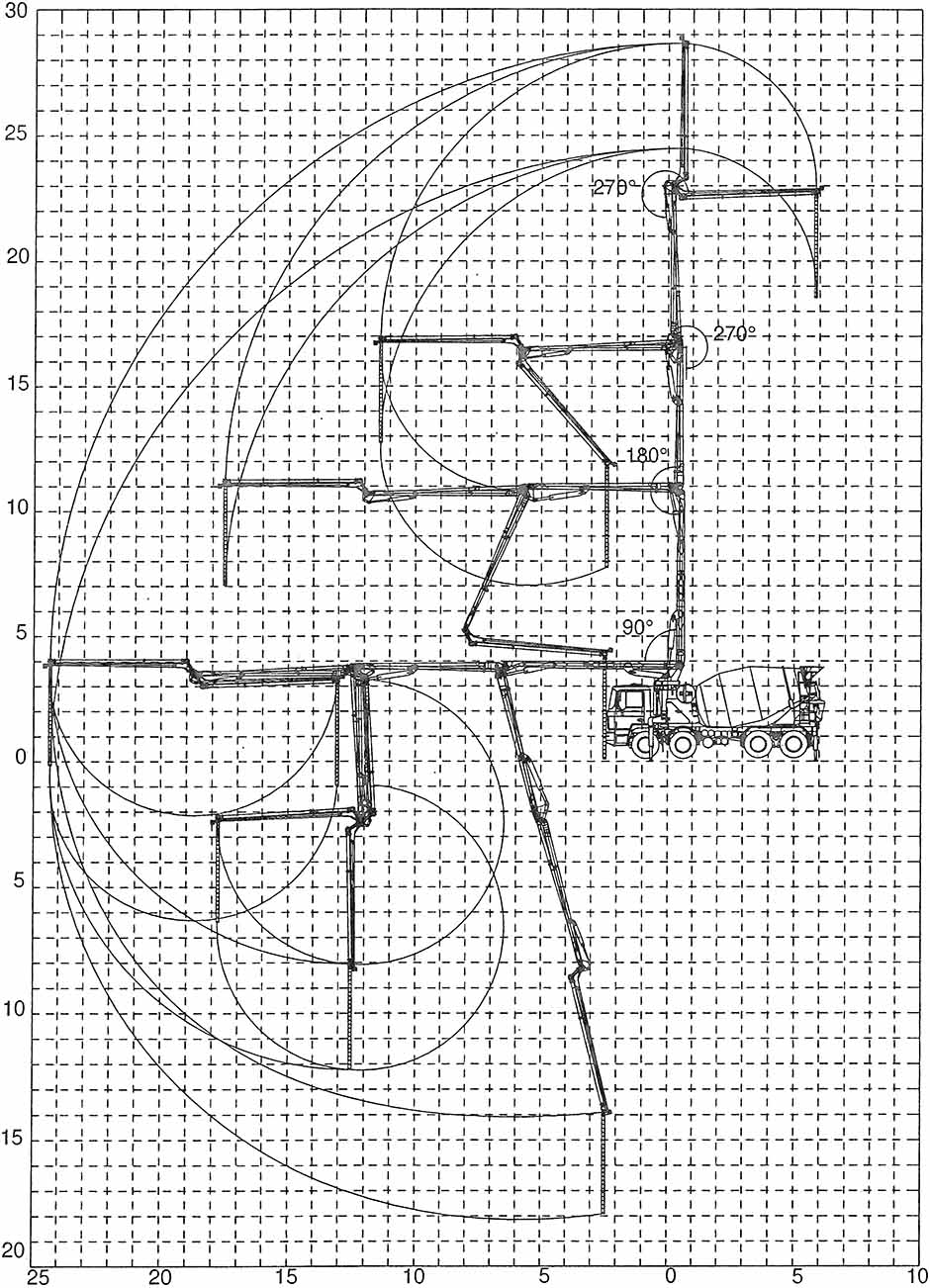

Operating range:
