The three-armed Schwing KVM 31/27 has a maximum reach of 31 m and can pump concrete to 27 m above the ground.
With a maximum concrete delivery rate of 116 m3 per hour large building sections can be completed swiftly.
Owing to the outrigger width of 6.70 m, the KVM 31/27 is suited for large scale and small construction sites.
| Specifications: | |
| Outrigger width front: | 6.50 m |
| Outrigger width back: | 6.70 m |
| Min. installation height: | 8.95 m |
| Number of Arms: | 3 |
| Max. height: | 31.00 m |
| Max. reach: | 27.00 m |
| Delivery rate: | 116 m3/h |
| Max. concrete pressure: | 70 Bar |

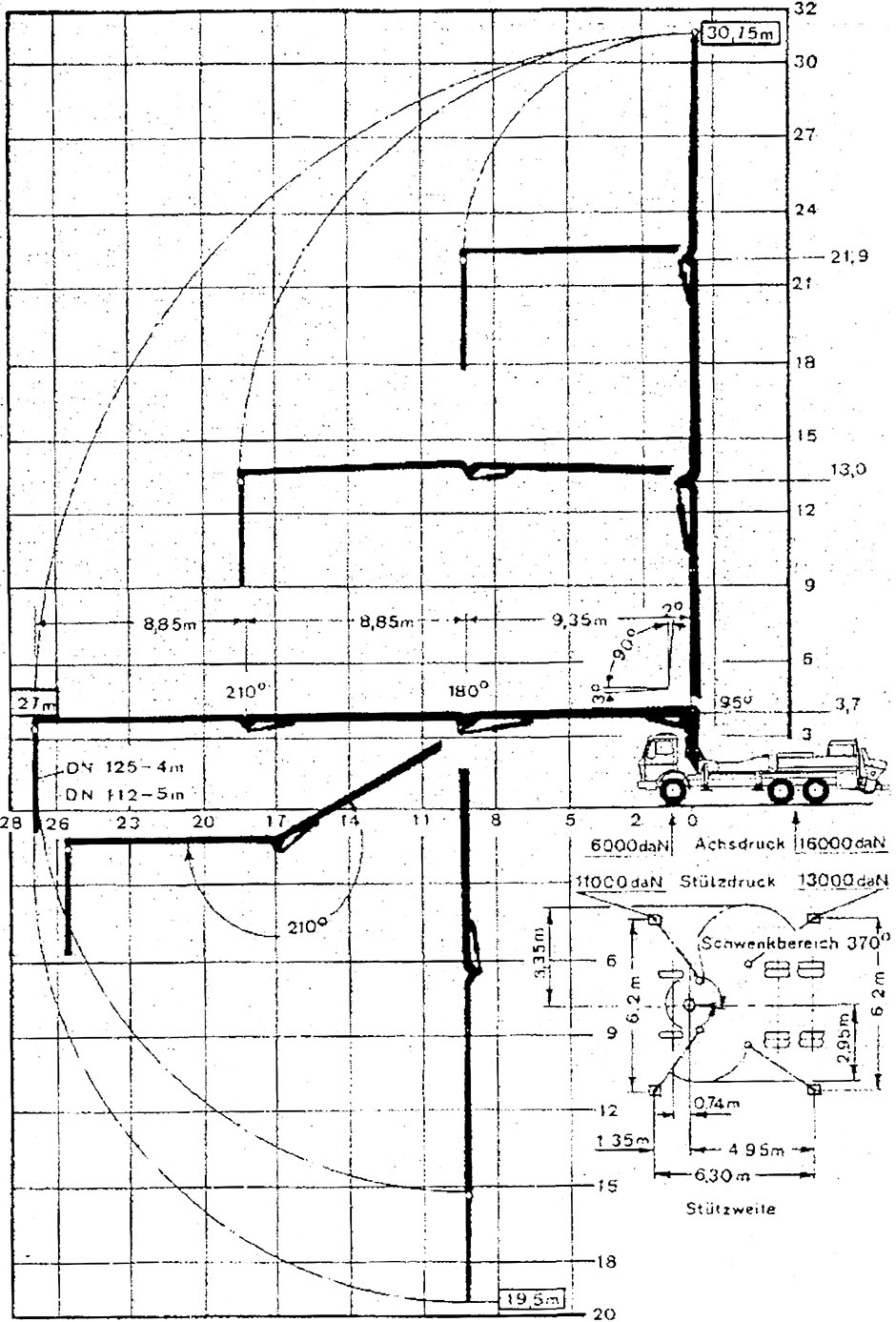

Operating range:
